Kruis prikkeldraad

Stijlen van scheermesjes De stijlen van scheermesjes worden hoofdzakelijk onderverdeeld in twee series: BTO (Barbed Tape Obstacle) en

Productdetails

Neem nu contact op

Products Tags

Productdetails

Scheermesjes stijlen

De bladstijlen worden hoofdzakelijk onderverdeeld in twee series:

BTO (Barbed Tape Obstacle) en CBT (Concertina Barbed Tape).

Er zijn vijf van de meest gebruikte stijlen: BTO-10 (kort lemmet), BTO-22 (middelgroot lemmet), BTO-30 (scheurlemmet), CBT-60 (vishaaklemmet) en CBT-65 (lang lemmet).



Cross Razor Wire Blade Types: BTO & CBT Series Breakdown



When it comes to security razor wire, blade design is the cornerstone of effectiveness. JINJIU’s cross razor wire lineup features two flagship series—BTO and CBT—each engineered to meet specific security needs, from high-risk prisons to commercial perimeters. Understanding their differences ensures you choose the right types of razor wire fencing for your site’s unique challenges.



The BTO series stands as the heavyweight of deterrence. BTO blades—short for “Barbed Tape Obstacle”—boast a robust design: 22mm or 30mm blade lengths, paired with a 2.5mm high-tensile steel core wire. These blades are sharpened to a 0.5mm tip radius, creating an intimidating barrier that discourages climbing or cutting. BTO-22, with its 22mm blades, is ideal for industrial yards or utility sites, where moderate security is needed. For maximum protection—think military bases or correctional facilities—BTO-30’s longer blades (30mm) and denser spacing (12 blades per meter) deliver uncompromising defense. All BTO models are available as galvanised razor wire, with a hot-dipped zinc coating (80-120g/m²) that resists corrosion in wet or coastal environments.



The CBT series, or “Concertina Barbed Tape,” prioritizes flexibility without sacrificing strength. Its blades measure 15mm to 20mm in length, with a thinner core wire (2.0mm) that allows tighter coiling—perfect for areas requiring compact storage or quick deployment, such as event perimeters or temporary construction zones. CBT-15 excels in urban settings, where its lower profile balances security with aesthetics, while CBT-20 offers enhanced deterrence for commercial properties. Like the BTO line, CBT security razor wire uses galvanised steel, ensuring durability in high-humidity regions or areas with frequent rainfall.



Both series integrate seamlessly into security razor wire fencing systems. BTO’s rigid structure pairs well with permanent fences, adding a top-tier barrier to existing walls. CBT’s coiled design works as a standalone obstacle or as a topper for chain-link fences, adapting to uneven terrain with ease. As part of JINJIU’s types of razor wire fencing, they share a commitment to safety: blades are sharp enough to deter but engineered to minimize lethal risk, complying with international safety standards.



Whether you need the brute strength of BTO or the adaptability of CBT, JINJIU’s cross razor wire blades deliver security tailored to your perimeter’s demands.



High-Security Applications: Where Cross Razor Wire Shines Brightest



In security, not all threats are equal—and cross razor wire rises to the most demanding challenges. As a pinnacle of types of razor wire fencing, its interlocking blade design and robust construction make it indispensable for sites requiring uncompromising protection. From tightly controlled facilities to critical infrastructure, JINJIU’s cross security razor wire delivers a barrier that deters, delays, and defends.



Prisons and correctional facilities rely on razor wire’s ability to prevent escapes. Its dual-strand, diamond-patterned blades (50x100mm) create a dense, impenetrable barrier, with sharp edges positioned to discourage climbing or cutting. Paired with perimeter walls, security razor wire fencing here uses galvanised razor wire for long-term resistance to corrosion, even in outdoor conditions where exposure to rain, mud, and debris is constant. The cross design’s rigidity ensures it can’t be bent or pulled apart, a critical feature in high-stakes environments.



Military bases and defense installations demand barriers that stand up to both human threats and harsh elements. Cross razor wire’s high-tensile steel core (2.5mm diameter) and hot-dipped galvanization (120g/m² coating) withstands extreme temperatures, salt spray, and intentional sabotage. Installed atop fences or along restricted zones, it integrates seamlessly with surveillance systems—its visibility acts as a psychological deterrent, while its strength ensures physical protection.



Industrial and manufacturing facilities, housing valuable equipment or sensitive materials, benefit from cross razor wire’s versatility. It adapts to irregular perimeters, whether around storage yards, loading docks, or utility areas. Unlike single-strand options, its cross structure minimizes gaps, preventing unauthorized access through undercutting or squeezing. As galvanised razor wire, it resists rust from chemical exposure or industrial runoff, maintaining integrity in factories, refineries, and power plants.



Border checkpoints and critical infrastructure (airports, water treatment plants) prioritize rapid deployment and durability. Cross razor wire’s coil design allows quick installation—unfolding to cover large areas in hours—while its welded blade connections eliminate loosening over time. When integrated into security razor wire fencing systems with alarms or motion sensors, it creates a multi-layered defense that buys time for response teams.



JINJIU’s cross razor wire isn’t just a barrier; it’s a tailored solution. Available in custom heights and blade densities, it aligns with specific security protocols, proving that in high-stakes scenarios, the right types of razor wire fencing isn’t an option—it’s a necessity.

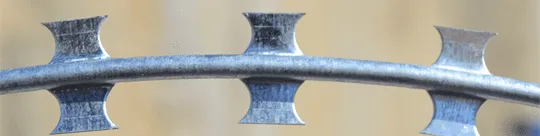

BTO-10 (kort blad)

BTO-10 korte bladdraad is het kortste type blad, eerst ontwikkeld voor militaire toepassingen. Het behoudt het originele profiel
van prikkeldraadlint is het meest economisch van alle prikkeldraadlinten.



Read More About green razor wire

Bladtype

Weerhaak dikte

Lengte weerhaak

Breedte weerhaak

Barb-afstand

Kerndraaddiameter

BTO-10

0.5 ± 0.05

10.0 ± 1

13 ± 1

25 ± 2

2.5 ± 0.1

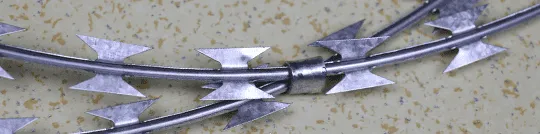

BTO-22 (middelgroot blad)

BTO-22 medium blade draad is een verbetering ten opzichte van short blade. Het wordt veel gebruikt in commerciële en industriële toepassingen. Medium blade concertina draad heeft scherpere weerhaakranden en is zuiniger. Voor BTO-22 blade draad bieden we ook nieuwe blade stijlen en dunne plaat fijne kern draad stijlen voor goedkopere opties.



Read More About double razor wire

Bladtype

Weerhaak dikte

Lengte weerhaak

Breedte weerhaak

Barb-afstand

Kerndraaddiameter

BTO-22

0.5 ± 0.05

22.0 ± 1

16 ± 1

35 ± 2

2.5 ± 0.1

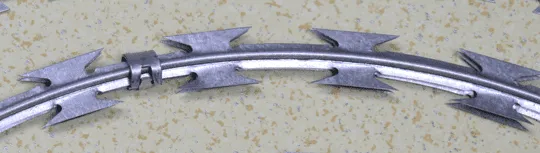

BTO-30 (scheurmes)

BTO-30-trekmesdraad is een hybride van het medium-blad en het lange blad, agressiever dan het medium-blad en zuiniger dan het lange blad.



Read More About diamond razor wire

Bladtype

Weerhaak dikte

Lengte weerhaak

Breedte weerhaak

Barb-afstand

Kerndraaddiameter

BTO-30

0.5 ± 0.05

30.0 ± 1

18 ± 1

45 ± 2

2.5 ± 0.1



CBT-60 (vishaakmes)

The CBT-60 Fish-hook blade wire is the metal in the middle that has gone through the most gyrations. All hooks have an eye to tie your line to, a sharp tip to pierce the fish’s mouth and a barb to hold it in place. Although there are a wide variety of innovations in point design, it’s the shank & the bend that has changed the most. This blade of protection effect is excellent and the cost is relatively high.



Read More About installing razor wire

Bladtype

Weerhaak dikte

Lengte weerhaak

Breedte weerhaak

Barb-afstand

Kerndraaddiameter

CGT-60

0.5 ± 0.05

60.0 ± 2

31 ± 1

100 ± 2

2.5 ± 0.1



CBT-65 (Lang lemmet)

CBT-65 lang mes is een viskeus product wanneer het is vervaardigd van gehard roestvrij staal mesmateriaal. Het wordt meestal gebruikt voor gevangenishekken. Extra lange mes scheermessen bieden het maximale angstaanjagende effect.



Read More About installing razor wire

Bladtype

Weerhaak dikte

Lengte weerhaak

Breedte weerhaak

Barb-afstand

Kerndraaddiameter

CBT-65

0.5 ± 0.05

65.0 ± 1

51 ± 1

100 ± 2

2.5 ± 0.1



Specificatie van prikkeldraad

Specificatie van prikkeldraad
Referentienummer Dikte van stalen plaat Draaddiameter Lengte weerhaak Breedte weerhaak Afstand tussen de weerhaken
(BWG-nummer) mm mm mm mm mm
BTO-10 0.5±0.05 2.5±0.1 12±1 13±1 26±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28 0.5±0.05 2.5±0.1 28±1 15±1 34±1
BTO-30 0.5±0.05 2.5±0.1 30±1 18±1 34±1
CGT-60 0.6±0.05 2.5±0.1 60±2 32±1 96±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2



Prikkeldraad specificatie

Prikkeldraad specificatie
Lus Buitendiameter Aantal lussen Standaardlengte per spoel Type Notities
450mm 33 7-8M CBT-60.65 Enkele spoel
500mm 56 12-13M CBT-60.65 Enkele spoel
700mm 56 13-14M CBT-60.65 Enkele spoel
960mm 56 14-15M CBT-60.65 Enkele spoel
450mm 56 8-9m (3 CLIPS) BTO-10.12.18.22.28.30 Kruistype
500mm 56 9-10M (3 CLIPS) BTO-10.12.18.22.28.30 Kruistype
600mm 56 10-11M (3 CLIPS) BTO-10.12.18.22.28.30 Kruistype
600mm 56 8-10M (5 CLIPS) BTO-10.12.18.22.28.30 Kruistype
700mm 56 10-12M (5 CLIPS) BTO-10.12.18.22.28.30 Kruistype
800mm 56 11-13M (5 CLIPS) BTO-10.12.18.22.28.30 Kruistype
900mm 56 12-14M (5 CLIPS) BTO-10.12.18.22.28.30 Kruistype
960mm 56 13-15M (5 CLIPS) BTO-10.12.18.22.28.30 Kruistype
980mm 56 14-16M (5 CLIPS) BTO-10.12.18.22.28.30 Kruistype



Specificaties spoelenlus

Buitendiameter

Aantal lussen

Uitgebreide lengte

Bade-type

Spoeltype

300mm

33

4–6 m

Cognitieve gedragstherapie - 60, 65

Enkele spoel

450mm

33

7–8 m

Cognitieve gedragstherapie - 60, 65

Enkele spoel

500mm

56

12–13 m

Cognitieve gedragstherapie - 60, 65

Enkele spoel

700mm

56

13–14 m

Cognitieve gedragstherapie - 60, 65

Enkele spoel

960mm

56

14–15 m

Cognitieve gedragstherapie - 60, 65

Enkele spoel

450mm

56

8–9 m (3 clips)

BTO-10, 12, 18, 22, 28, 30

Kruistype

500mm

56

9–10 m (3 clips)

BTO-10, 12, 18, 22, 28, 30

Kruistype

600mm

56

10–11 m (3 clips)

BTO-10, 12, 18, 22, 28, 30

Kruistype

700mm

56

10–12 m (5 clips)

BTO-10, 12, 18, 22, 28, 30

Kruistype

900mm

56

12–14 m (5 clips)

BTO-10, 12, 18, 22, 28, 30

Kruistype

980mm

56

14–16 m (5 clips)

BTO-10, 12, 18, 22, 28, 30

Kruistype



Roestvrijstalen prikkeldraad Gegalvaniseerd prikkeldraad / Scheermesprikkeldraad / Scheermesprikkeldraad / Scheermesprikkelbanddraad



  • Read More About prison razor wire fence



  • Read More About diamond razor wire



  • Read More About diamond razor wire fence



  • Read More About razor blade fence



  • Read More About razor blade fence



  • Read More About razor blade fence



Roestvrijstalen concertina prikkeldraad materiaal

Warm gegalvaniseerd prikkeldraad

Elektrisch gegalvaniseerd prikkeldraad

Pvc-schilderen prikkeldraad

Stainless steel  razor barbed wire



Stainles Steel Concertina  Razor wire Type

Concetina Scheermesdraad

Kruistype prikkeldraad

Enkele spoel scheermesdraad

Platte wikkel scheermesdraad

Gelast prikkeldraadgaas van scheermesjes

Neem contact op

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

* Naam

* E-mailadres

Telefoon

*Bericht

Veelgestelde vragen

Veelgestelde vragen over kruisprikkeldraadhekken

Hoe kan ik de kwaliteit van het prikkeldraadhekwerk garanderen?

How to ensure the quality of the cross razor wire fence? How to ensure the quality of the cross razor wire fence?
Het kruis scheermesdraad hek is gemaakt van hoogwaardige materialen die bestand zijn tegen zware omstandigheden, roest en corrosie. Kwaliteitscontrolemaatregelen worden geïmplementeerd tijdens het productieproces om ervoor te zorgen dat elke rol voldoet aan de industrienormen en de verwachtingen van de klant, en scherpe messen kunnen ook betrouwbare veiligheidsgaranties bieden.

Voor welke omgevingen is het kruisbeveiligingsprikkeldraad geschikt?

What environments is the cross security razor wire suitable for? What environments is the cross security razor wire suitable for?
Cross security razor wire wordt vaak gebruikt in omgevingen met een hoge beveiliging, zoals gevangenissen, militaire bases, industriële faciliteiten en woonhuizen. Het heeft een significant effect op plekken die visuele afschrikking vereisen, gevoelig zijn voor vernietiging of illegale indringing, en kan worden geïnstalleerd op structuren zoals hekken en muren.

Wat zijn de voordelen van een kruisvormig prikkeldraadhekwerk in vergelijking met andere soorten prikkeldraadhekken?

What are the advantages of a cross shaped razor wire security fencing compared to other types of razor wire fences? What are the advantages of a cross shaped razor wire security fencing compared to other types of razor wire fences?
Het unieke kruisvormige ontwerp van het kruisvormige prikkeldraadbeveiligingshekwerk heeft een sterkere visuele afschrikking en fysieke obstructie-effecten en kan onbevoegd personeel vanuit meerdere hoeken blokkeren.

Waar moet je op letten bij het installeren van een kruisgelaste prikkeldraad?

What are the things to pay attention to when installing a cross welded razor wire? What are the things to pay attention to when installing a cross welded razor wire?
Zorg bij het installeren van de kruisgelaste scheermesdraad dat de installatiepositie stabiel is en vermijd het installeren ervan op plaatsen die gemakkelijk toegankelijk zijn voor personeel om onbedoeld letsel te voorkomen. Tegelijkertijd is het noodzakelijk om de installatie-instructies strikt te volgen om ervoor te zorgen dat de bladverbinding stevig is en om het beste beschermende effect te bereiken.
