Product Details

Razor Blade Styles

The blade styles are mainly divided into two series:

BTO (Barbed Tape Obstacle) and CBT (Concertina Barbed Tape).

Among them, there are five most commonly used styles, including BTO-10 (Short Blade), BTO-22 (Medium blade), BTO-30 (Tear Blade), CBT-60 (Fish-Hook Blade), CBT-65 (Long Blade).

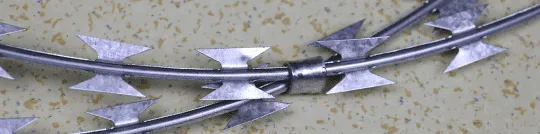

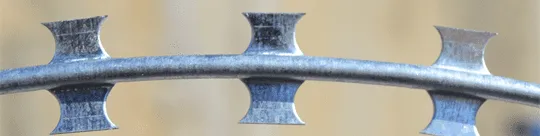

BTO-10 (Short Blade)

BTO-10 short blade wire is the shortest type of blade, first developed for military applications. It retains the original profile
of razor wire barbed tape is the most economical among all the barbed tapes.


Blade Type	Barb Thickness	Barb Length	Barb Width	Barb Spacing	Core Wire Diameter
BTO-10	0.5 ± 0.05	10.0 ± 1	13 ± 1	25 ± 2	2.5 ± 0.1

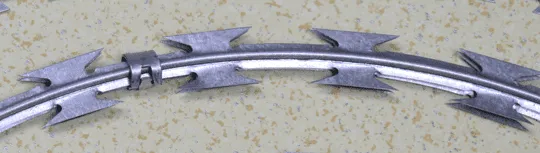

BTO-22 (Medium Blade)

BTO-22 medium blade wire is an improvement in short blade. It is widely used in commercial and industrial applications. Medium blade concertina wire has sharper barbed edges and is more economical. For BTO-22 blade wire, we also provide new blade styles and thin-plate fine core wire styles for lower-cost options.


Blade Type	Barb Thickness	Barb Length	Barb Width	Barb Spacing	Core Wire Diameter
BTO-22	0.5 ± 0.05	22.0 ± 1	16 ± 1	35 ± 2	2.5 ± 0.1

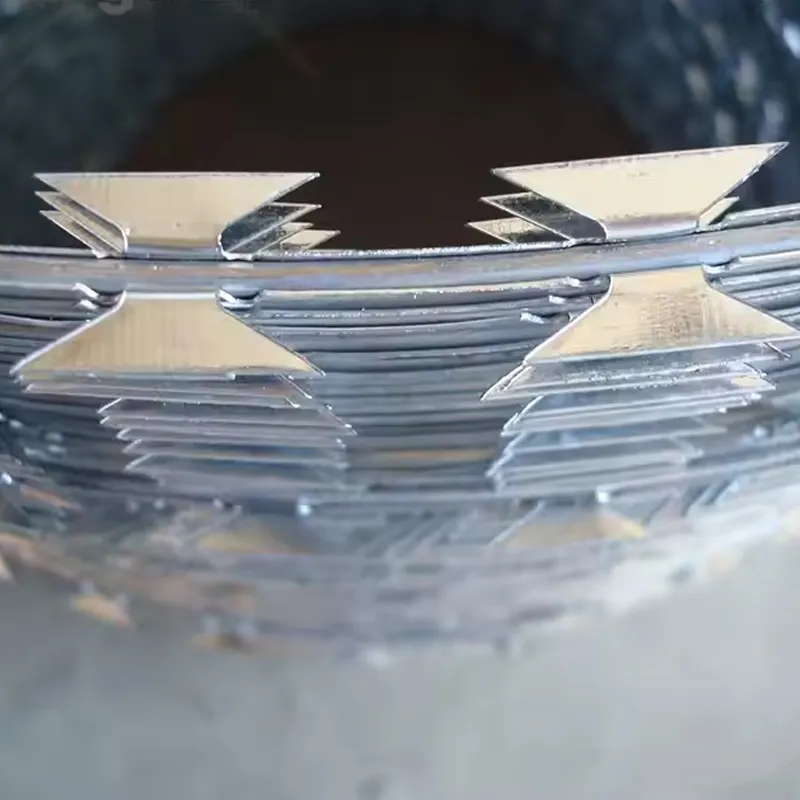

BTO-30 (Tear Blade)

BTO-30 tear blade wire is a hybrid of the medium blade and long blade, more vicious than the medium blade, and more economical than the long blade.


Blade Type	Barb Thickness	Barb Length	Barb Width	Barb Spacing	Core Wire Diameter
BTO-30	0.5 ± 0.05	30.0 ± 1	18 ± 1	45 ± 2	2.5 ± 0.1

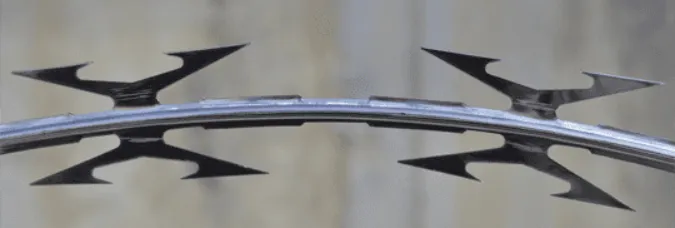

CBT-60 (Fish-Hook Blade)

The CBT-60 Fish-hook blade wire is the metal in the middle that has gone through the most gyrations. All hooks have an eye to tie your line to, a sharp tip to pierce the fish’s mouth and a barb to hold it in place. Although there are a wide variety of innovations in point design, it’s the shank & the bend that has changed the most. This blade of protection effect is excellent and the cost is relatively high.


Blade Type	Barb Thickness	Barb Length	Barb Width	Barb Spacing	Core Wire Diameter
CBT-60	0.5 ± 0.05	60.0 ± 2	31 ± 1	100 ± 2	2.5 ± 0.1

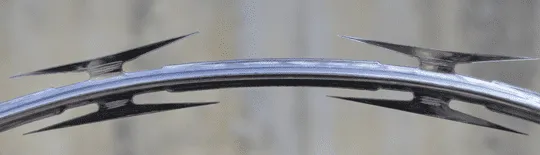

CBT-65 (Long Blade)

CBT-65 long blade is a viscous product when manufactured of toughened stainless steel blade material. It is usually used for prison fencing. Extra-long blade razors provide the maximum frightening effect.


Blade Type	Barb Thickness	Barb Length	Barb Width	Barb Spacing	Core Wire Diameter
CBT-65	0.5 ± 0.05	65.0 ± 1	51 ± 1	100 ± 2	2.5 ± 0.1

Razor Wire Specification

Razor Wire Specification
Reference Number	Steel Plate Thickness	Wire Dia	Barb Length	Barb Width	Barb spacing
(B.W.G.)	mm	mm	mm	mm	mm
BTO-10	0.5±0.05	2.5±0.1	12±1	13±1	26±1
BTO-12	0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18	0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22	0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28	0.5±0.05	2.5±0.1	28±1	15±1	34±1
BTO-30	0.5±0.05	2.5±0.1	30±1	18±1	34±1
CBT-60	0.6±0.05	2.5±0.1	60±2	32±1	96±2
CBT-65	0.6±0.05	2.5±0.1	65±2	21±1	100±2

Barbed Wire Specification

Barbed Wire Specification
Loop Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450mm	33	7-8M	CBT-60.65	Single coil
500mm	56	12-13M	CBT-60.65	Single coil
700mm	56	13-14M	CBT-60.65	Single coil
960mm	56	14-15M	CBT-60.65	Single coil
450mm	56	8-9m(3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
500mm	56	9-10M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
600mm	56	10-11M(3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
600mm	56	8-10M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
700mm	56	10-12M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
800mm	56	11-13M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
900mm	56	12-14M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
960mm	56	13-15M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
980mm	56	14-16M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type

Coils Loop Specifications

Outside Diameter	No. of Loops	Extended Length	Bade Type	Coil Type
300 mm	33	4–6 m	CBT- 60, 65	Single coil
450 mm	33	7–8 m	CBT- 60, 65	Single coil
500 mm	56	12–13 m	CBT- 60, 65	Single coil
700 mm	56	13–14 m	CBT- 60, 65	Single coil
960 mm	56	14–15 m	CBT- 60, 65	Single coil
450 mm	56	8–9 m (3 clips)	BTO- 10, 12, 18, 22, 28, 30	Cross type
500 mm	56	9–10 m (3 clips)	BTO- 10, 12, 18, 22, 28, 30	Cross type
600 mm	56	10–11 m (3 clips)	BTO- 10, 12, 18, 22, 28, 30	Cross type
700 mm	56	10–12 m (5 clips)	BTO- 10, 12, 18, 22, 28, 30	Cross type
900 mm	56	12–14 m (5 clips)	BTO- 10, 12, 18, 22, 28, 30	Cross type
980 mm	56	14–16 m (5 clips)	BTO- 10, 12, 18, 22, 28, 30	Cross type

Stainless steel Razor wire Galvanized Razor Wire /Razor Barbed Wire/Razor wire/Razor Barb Tape Wire

Stainless Steel Concertina Razor wire Material

Hot dipped galvanized razor barbed wire

Electric galvanized razor wire

Pvc painting razor barbed wire

Stainless steel razor barbed wire

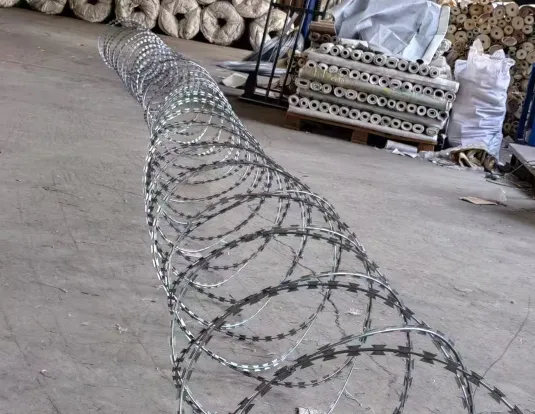

Stainles Steel Concertina Razor wire Type

Concetina Razor wire

Cross type Razor Wire

Single Coil Razor Wire

Flat Wrap Razor wire

Welded Razor barbed wire mesh

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

* Name

* E-mail

Phone

*Message

FAQS

Cross Razor Wire Fence FAQ

How to ensure the quality of the cross razor wire fence?

The cross razor wire fence is made of high-quality materials that can withstand harsh environments, rust and corrosion. Quality control measures are implemented throughout the production process to ensure that each roll meets industry standards and customer expectations, and sharp blades can also provide reliable safety assurance.

What environments is the cross security razor wire suitable for?

Cross security razor wire is commonly used in high security environments such as prisons, military bases, industrial facilities, and residential properties. It has a significant effect in places that require visual deterrence, are prone to destruction or illegal intrusion, and can be installed on structures such as fences and walls.

What are the advantages of a cross shaped razor wire security fencing compared to other types of razor wire fences?

The unique cross shaped design of the cross shaped razor wire security fencing may have stronger visual deterrence and physical obstruction effects, and can block unauthorized personnel from multiple angles.

What are the things to pay attention to when installing a cross welded razor wire?

When installing the cross welded razor wire, ensure that the installation position is stable and avoid installing it in areas that are easily accessible to personnel to prevent accidental injury. At the same time, it is necessary to strictly follow the installation instructions to ensure that the blade connection is firm and to achieve the best protective effect.
