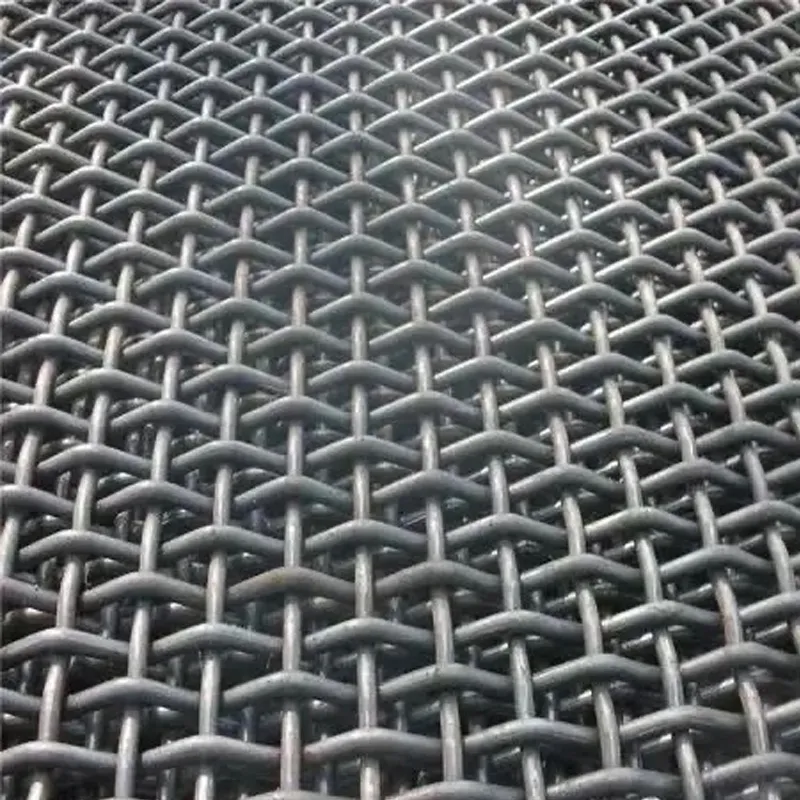

Crimped Wire Mesh

Mining screen, also known as rock crusher screen, vibrating screening screen, crusher screening screen. Mining screens are usually made of 65MN wires of the same diameter, which are curled to form precise square openings and achieve maximum rigidity.

Product Details

Contact Now

Products Tags

crimped brass wire mesh

crimped mesh

crimped wire mesh

crimped woven wire mesh

intercrimp wire mesh

lock crimp wire mesh

Product Details

Production Description

Its high tensile strength, excellent vibration resistance and long service life enable it to obtain accurate screening results and services at the best price, so 65MN curled wire mesh is the perfect choice for rock crusher screens and mining screens.

65MN Material Chemical Composition
Material	C	Si	Mn	Cr	Ni	Cu
65Mn steel Example: 6.5mm	0.62-0.70	0.17-0.37	0.90-1.20	≤0.25	≤0.30	≤0.25
65Mn steel Example: 6.5mm	0.66	0.25	0.98	0.04	0.01	0.03

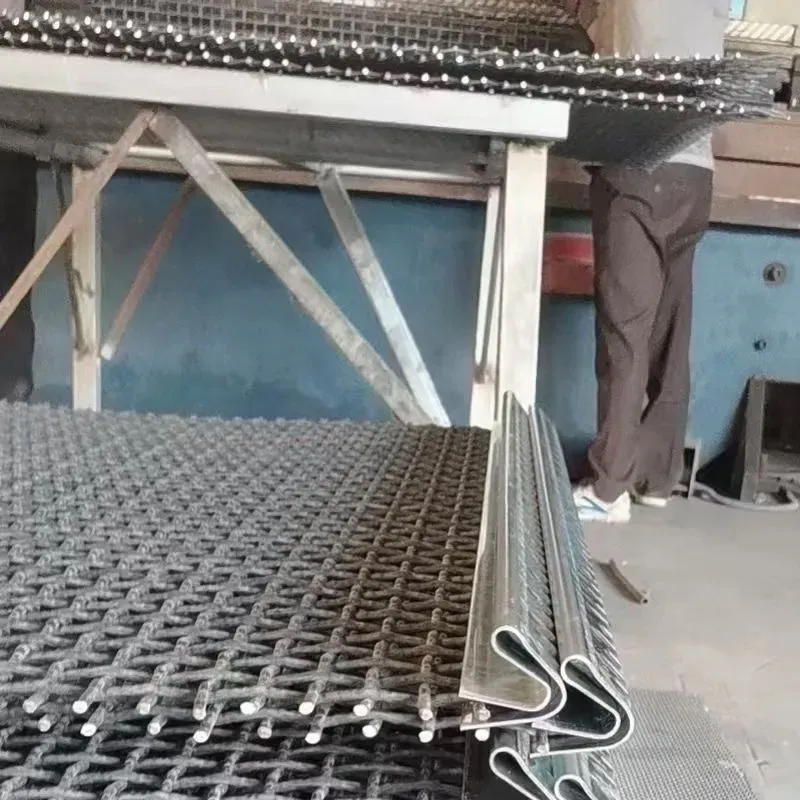

Different edge types Heavy duty crimped mesh material is high strength steel wire, 45# steel wire, 65Mn steel wire. It is usually used for screening stones and sand in mines, coal industry. The mesh plates have different edges.

Crimped Wire Mesh FAQ

What is the crimped woven wire mesh like?

Crimped woven wire mesh is a kind of woven wire mesh, which is characterized by curled or corrugated wires. This design enhances the strength and stability of the net, and the crimping process allows the wires to interlock safely, providing durable and reliable products, which are suitable for many applications such as construction, filtration and fencing.

What are the common applications of crimped wire mesh?

In the field of architecture, crimped wire mesh is used as reinforcement and protective barrier in concrete; In terms of filtration, it is used in water treatment plants and industrial filtration systems to separate solids from liquids; In the enclosure scene, it is used for livestock breeding and safety protection in agricultural and industrial environments.

What specific effect does the crimping design of crimped wire mesh have on its performance?

The crimping design of the crimped wire mesh enhances the strength and stability of the mesh, provides additional rigidity, ensures that the mesh keeps its shape under pressure, reduces the risk of deformation over time, and enables the wires to interlock safely, making the products more durable and reliable.

Compared with ordinary wire mesh, what are the advantages of crimped mesh in building applications?

In building applications, the crimped mesh has higher strength and stability than the ordinary wire mesh, and as a reinforcement in concrete, it can better enhance the bearing capacity of concrete structures; When used as a protective barrier, it can withstand external pressure and impact and ensure building safety. Its unique curling structure can also adapt to some complex building environments and construction requirements.
