Introduction

In the modern era, noise pollution has become a significant concern, particularly in urban and industrial areas. The Metal Noise Barrier developed by Hebei Jinjiu Metal Products Co., Ltd. represents a cutting-edge solution to this challenge. This article provides an in-depth analysis of the product's features, technical specifications, applications, and the company's background, ensuring a comprehensive understanding of its value and innovation.

Product Features and Advantages

The Metal Noise Barrier is engineered to effectively reduce noise from highways, viaducts, and other sound sources. Its primary function is to act as a barrier between the noise source and the affected areas, significantly minimizing the impact of sound waves. This product is not only durable but also adaptable to various environments, making it a versatile choice for noise control solutions.

Key Features

Material Variety: The barriers are constructed using high-quality materials such as galvanized steel, aluminum alloy, and PC boards, ensuring longevity and resistance to environmental factors.
Customizable Design: The product offers flexibility in design, allowing for customization based on specific project requirements, including panel thickness, width, and surface treatments.
Acoustic Efficiency: The design incorporates advanced acoustic materials like glass wool and rock wool, enhancing the barrier's ability to absorb and reduce noise effectively.
Wind Resistance: The barriers are tested to withstand significant wind pressure, ensuring stability even in adverse weather conditions.

Technical Specifications

The Metal Noise Barrier is available in various sizes and configurations, tailored to meet the needs of different applications. Below is a detailed specification table outlining the key parameters:

Parameter	Specifications
Height	2.0m - 4.0m
Length	0.5m - 2.0m
Panel Thickness	40mm - 100mm
Panel Width	500mm, 600mm, 1000mm
Panel Style	Steel panel, PC board
Hole Style	Blind hole, small hole
Material	Steel or aluminum barrier
Surface Treatment	Galvanized, powder coated
H-Shape Post	Q235B steel
Noise Absorb Material	Glass wool, rock wool, etc.

Wind Pressure Resistance

The product is designed to withstand varying wind pressures, as illustrated in the following table:

Wind Pressure (kN/m²)	Height (m)	Vertical Force (N)	Horizontal Force (kN)	Bending Moment (kNm)
≤0.45	2	1.7	9.1	9.4
≤0.45	2.5	2.64	11.4	14.7
≤0.45	3	3.3	13.7	21.1
≤0.45	3.5	4.28	16	28.6
≤0.45	4	4.92	18.3	37.3
0.45-0.75	2	1.85	15.2	15.8
0.45-0.75	2.5	2.9	19	24.5
0.45-0.75	3	3.62	22.8	35.1
0.45-0.75	3.5	4.32	26.7	47.7
0.45-0.75	4	5.4	30.5	62.1

Applications and Use Cases

The Metal Noise Barrier is widely used in various settings where noise control is essential. Its applications include:

Highways and Roads: Reducing traffic noise to protect nearby residential areas and wildlife.
Industrial Zones: Minimizing noise from factories and machinery to create a safer working environment.
Urban Areas: Enhancing the quality of life by mitigating noise from construction sites and public transport.
Public Infrastructure: Installing barriers near train stations and airports to reduce noise pollution.

Company Background: Hebei Jinjiu Metal Products Co., Ltd

Hebei Jinjiu Metal Products Co., Ltd. is a leading manufacturer of metal products, specializing in noise barriers and other acoustic solutions. With a commitment to quality and innovation, the company has established itself as a trusted name in the industry. Their expertise in producing durable and effective noise barriers is reflected in their extensive product range and customer satisfaction.

Founded with a vision to address environmental challenges, Hebei Jinjiu has consistently focused on developing products that meet the evolving needs of the market. Their state-of-the-art facilities and skilled workforce ensure that each product is crafted to the highest standards. The company's dedication to research and development has led to the creation of advanced noise control solutions that are both effective and sustainable.

For more information about Hebei Jinjiu Metal Products Co., Ltd., visit their official website.

Product Images

Below are images of the Metal Noise Barrier to provide a visual representation of its design and construction:

Metal Noise Barrier - Hebei Jinjiu Metal Products Co., Ltd | Noise Reduction, Customizable Design

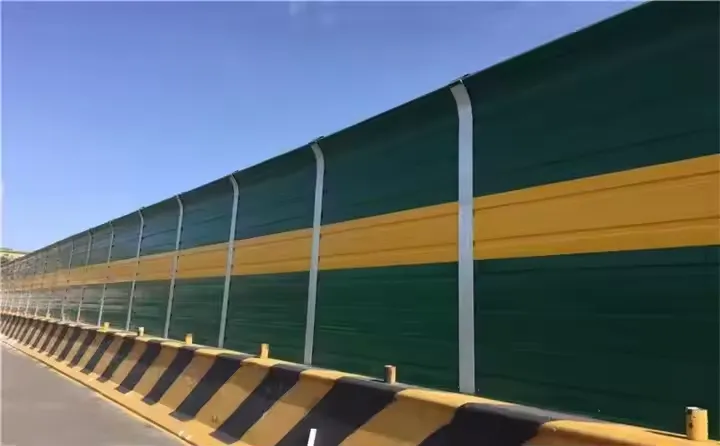

Image 1: Metal Noise Barrier Design

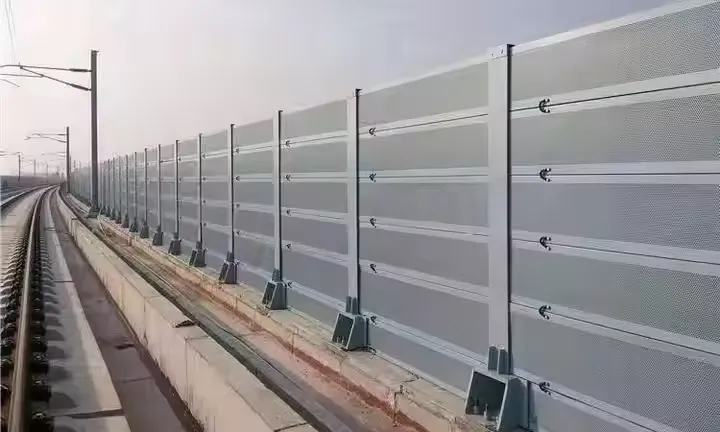

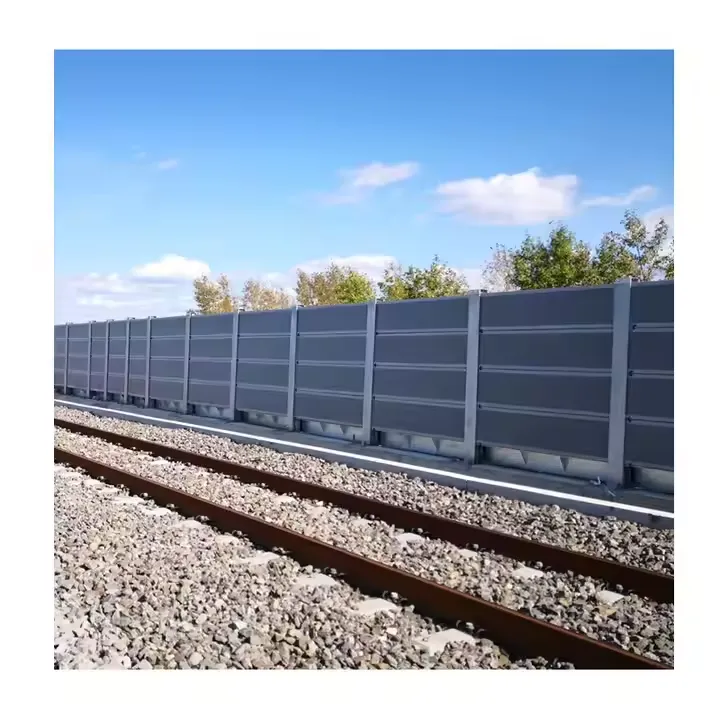

Image 2: Installation of Noise Barrier

Image 3: Customizable Surface Treatments

Conclusion

The Metal Noise Barrier by Hebei Jinjiu Metal Products Co., Ltd. exemplifies the intersection of innovation and practicality in noise control solutions. With its robust design, advanced materials, and customizable options, this product is well-suited for a wide range of applications. As urbanization continues to expand, the demand for effective noise barriers will only grow, and Hebei Jinjiu is poised to meet this demand with its commitment to quality and customer satisfaction.

References

Authoritative Source: National Institute of Standards and Technology (NIST). "Acoustic Barriers and Noise Control." https://www.nist.gov
