The Manufacturing Process: From Raw Wire to Resilient Mesh

The production of pvc coated welded wire mesh is a meticulously controlled multi-stage process designed to ensure optimal product performance and longevity. Understanding these stages is crucial for appreciating the inherent quality and engineering behind the final product.

Process Flow Schematic:

1. Raw Material Procurement & Inspection: High-quality low-carbon steel wire rods, typically meeting ASTM A82/A85 standards, are sourced. Incoming materials undergo stringent inspection for chemical composition, tensile strength, and surface defects to ensure compliance.
2. Wire Drawing: The steel wire rods are drawn through a series of dies to achieve the precise wire diameter (gauge) required for the final mesh specification, enhancing tensile strength and surface finish.
3. Welding: Individual wires are accurately positioned and welded at their intersections using automated resistance welding machines. This creates a uniformly strong, rigid mesh panel or roll with precise apertures. This step is critical for the structural integrity of the pvc coated welded wire mesh.
4. Cleaning & Pre-treatment: The welded mesh undergoes a thorough cleaning process, often involving degreasing, pickling (acid etching), and rinsing. This removes impurities, rust, and scale, creating a pristine surface for optimal PVC adhesion. A conversion coating (e.g., phosphating) may be applied to further enhance bond strength.
5. Primer Application (Optional but Recommended): For superior adhesion and long-term durability, a specialized primer layer is applied to the clean, pre-treated steel. This acts as a bonding agent between the metal and the PVC coating.
6. PVC Coating: This is the defining step. The pre-treated mesh is typically coated using one of two primary methods:
   • Fluidized Bed Coating: The mesh is pre-heated and then immersed into a fluidized bed of finely powdered PVC resin. The heat causes the PVC particles to melt and adhere uniformly to the wire surface.
   • Extrusion Coating: A molten layer of PVC is extruded directly onto the pre-heated mesh, providing a dense, consistent coating. This method is often preferred for thicker coatings and larger wire gauges.
7. Curing: After coating, the mesh passes through a curing oven where the PVC coating is thermally fused and cross-linked, ensuring a robust, smooth, and chip-resistant finish.
8. Quality Control & Testing: Throughout and after the process, samples undergo rigorous testing for coating thickness, adhesion strength (e.g., peel tests), UV resistance, salt spray resistance (ASTM B117), and overall visual quality. Products are typically manufactured to international standards like ISO 9001 for quality management and relevant ASTM or EN standards for material performance.
9. Packaging & Dispatch: The finished rolls or panels are carefully packaged to prevent damage during transit, ready for various target industries such as petrochemical, metallurgy, and water supply & drainage.

Technical Specifications and Parameters

Selecting the appropriate pvc coated welded wire mesh requires a thorough understanding of its technical specifications. These parameters directly influence the material's performance, durability, and suitability for specific applications.

Key Parameters Explained:

• Wire Gauge (BWG/SWG): Refers to the diameter of the steel wire before PVC coating. Common gauges for pvc coated welded wire mesh range from 8 BWG (4.19mm) to 23 BWG (0.64mm). A lower gauge number indicates a thicker wire, offering greater strength.

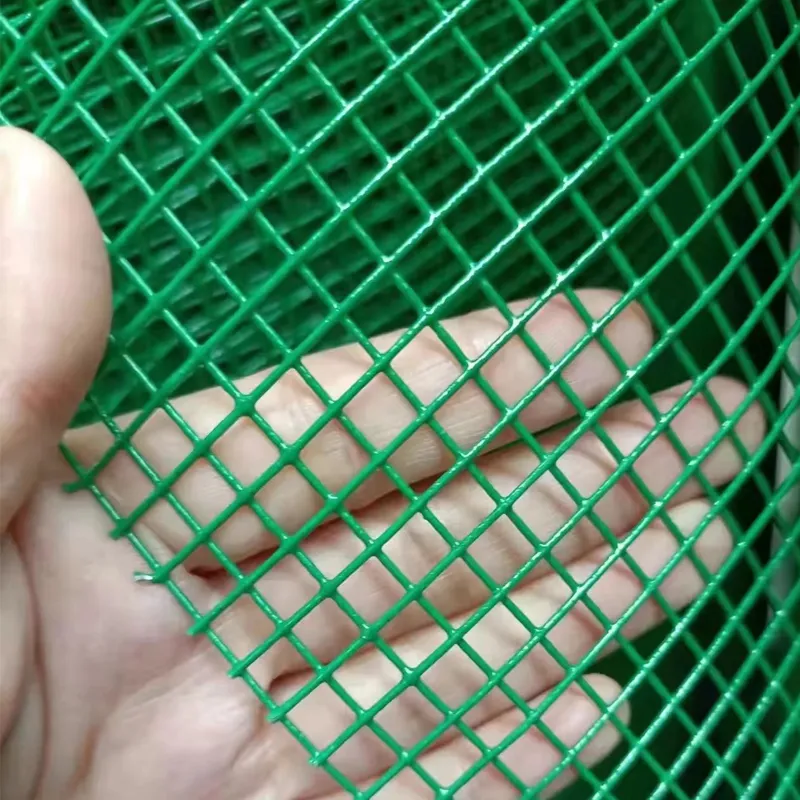

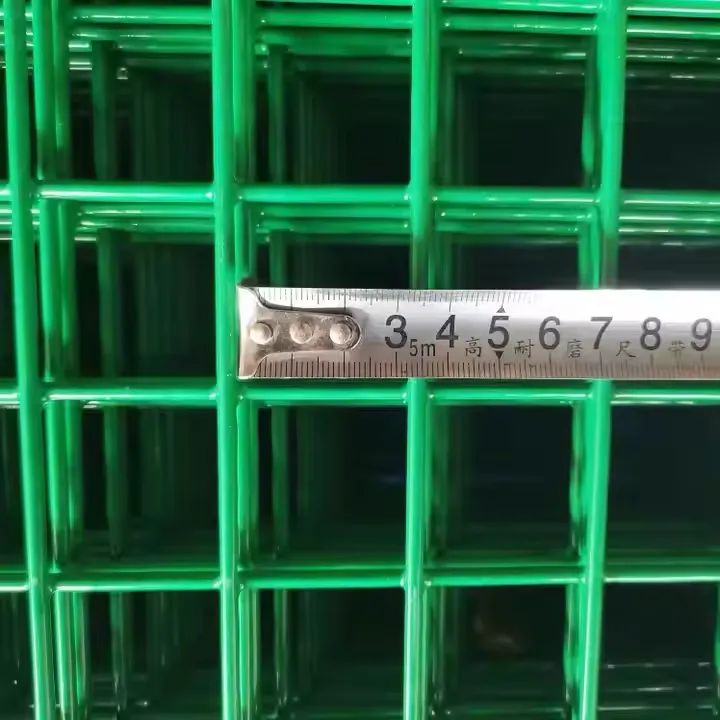

• Mesh Aperture/Opening: The size of the square or rectangular openings between the wires, e.g., 1 2 inch pvc coated wire mesh (12.7x12.7mm). This dictates visibility, containment capabilities, and flow rates.
• PVC Coating Thickness: Typically ranges from 0.4mm to 1.0mm (15 to 40 mils). A thicker coating generally provides enhanced protection against abrasion, UV degradation, and chemical exposure, contributing significantly to the mesh's service life, which can exceed 15-20 years under normal conditions.
• Tensile Strength: The maximum stress the steel wire can withstand before fracturing. For low-carbon steel, this is typically between 380-550 MPa, ensuring the mesh can resist significant external forces.
• Adhesion Strength: A critical parameter measured by the force required to peel the PVC coating from the steel wire. High adhesion is vital to prevent delamination, which would compromise the protective barrier.

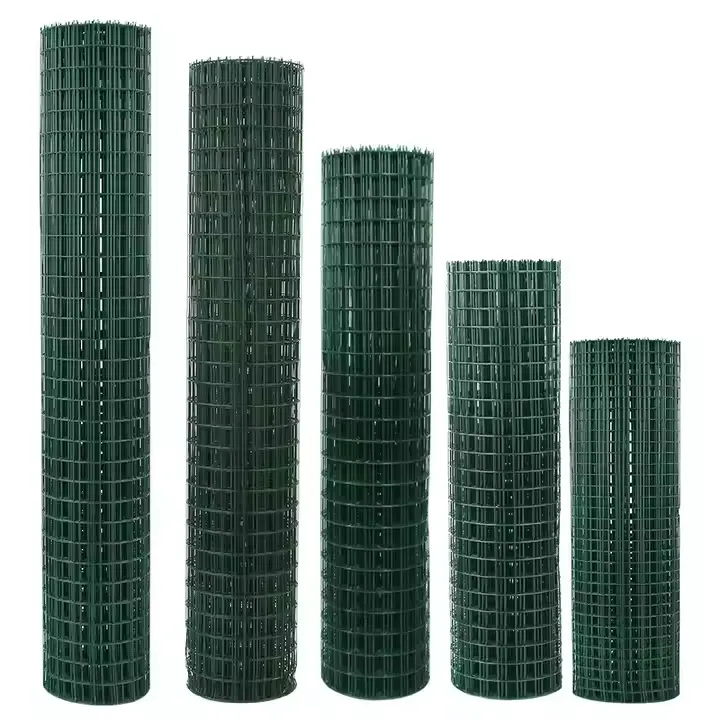

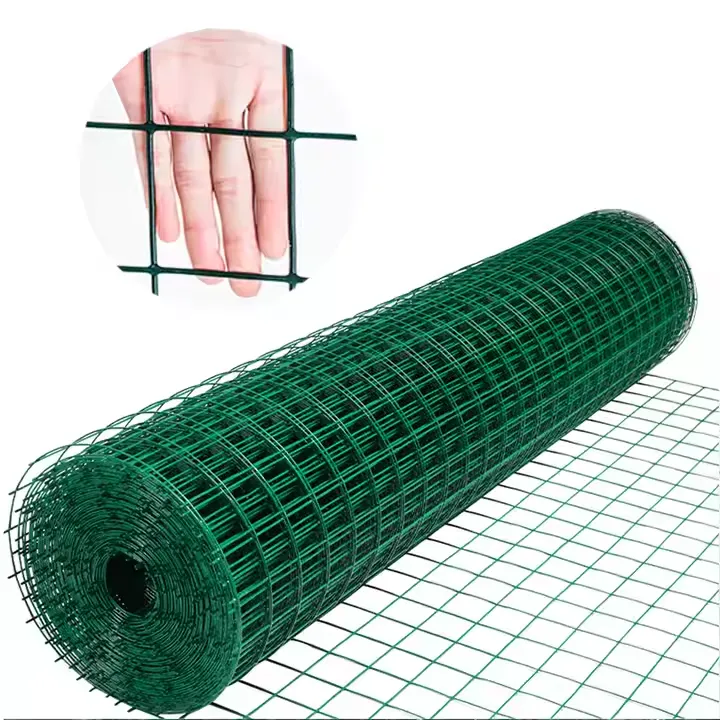

• Roll/Panel Dimensions: Available in various widths and lengths, such as 5 ft pvc coated welded wire fence (1.52m) by 50 ft (15.24m) rolls, or custom panel sizes.

Typical Product Specification Table: PVC Coated Welded Wire Mesh

Advantages and Application Scenarios

The unique composition of pvc coated welded wire mesh delivers a distinct set of advantages, enabling its deployment in a wide array of challenging environments and critical applications.

Key Technical Advantages:

• Superior Corrosion Resistance: The PVC coating forms an impermeable barrier, protecting the steel core from moisture, chemicals (acids, alkalis), salt spray, and atmospheric pollutants. This makes it ideal for coastal areas, chemical plants, and wastewater treatment facilities.
• Enhanced Durability & Longevity: With its robust coating, the mesh resists abrasion, impact, and UV degradation. This significantly extends its service life, often exceeding that of galvanized-only alternatives by several years, reducing total cost of ownership.
• Aesthetic Versatility: Available in various colors, such as black vinyl coated welded wire fence or green pvc coated steel welded wire rolled fencing, it can blend seamlessly into natural landscapes or match architectural designs.
• Low Maintenance: The smooth, non-porous surface of the PVC coating is easy to clean and requires minimal upkeep, eliminating the need for regular painting or treatment.
• Improved Safety: The PVC coating often creates a smoother surface, reducing sharp edges and minimizing risk of injury during installation or interaction, a key factor in public and animal enclosures.

Typical Application Scenarios:

• Perimeter Fencing: From industrial facilities to commercial properties and residential estates, for security and demarcation. The 5 ft pvc coated welded wire fence is a popular choice for property boundaries.
• Animal Enclosures: Ideal for pet kennels, zoo enclosures, and agricultural fencing due to its durability, safety, and resistance to animal waste.
• Gardens and Landscaping: Used for garden borders, trellises, and plant support where aesthetics and rust resistance are important.
• Aquaculture & Marine Applications: Highly effective for oyster trays, fish farm enclosures, and other marine environments due to its exceptional resistance to saltwater corrosion.
• Machine Guarding: Provides robust and safe enclosures for machinery in industrial settings.
• Construction & Reinforcement: Used in lightweight concrete reinforcement or as a base for plastering.
• Target Industries: Extensively employed in petrochemical plants, metallurgy facilities, water supply & drainage systems, transportation infrastructure, and agriculture.

Industry Trends and Vendor Comparison

The market for coated welded wire mesh is continuously evolving, driven by demands for greater sustainability, advanced performance, and cost-efficiency.

Current Industry Trends:

• Eco-friendly PVC Formulations: Growing demand for phthalate-free and lead-free PVC compounds, aligning with stricter environmental regulations and corporate social responsibility initiatives.
• Enhanced UV Stabilizers: Development of PVC coatings with superior UV resistance to prevent fading and material degradation in regions with intense sun exposure, further extending the product's lifespan.
• Smart Fencing Integration: Integration of mesh fencing with surveillance systems, sensors, and access control for enhanced security applications, particularly in critical infrastructure.
• Customization and Aesthetics: Increased focus on bespoke solutions regarding mesh size, wire gauge, and especially color options to meet specific project design and branding requirements.
• Automation in Production: Advanced automation and robotics in manufacturing processes to ensure higher consistency, faster production, and reduced labor costs, leading to more competitive pricing for high-quality coated welded wire mesh.

Vendor Comparison: PVC Coated vs. Other Mesh Types

When selecting wire mesh, B2B decision-makers often weigh the pros and cons of different material treatments. The table below compares pvc coated welded wire mesh with commonly used alternatives.

Customized Solutions and Engineering Expertise

Recognizing that every project has unique requirements, manufacturers of pvc coated welded wire mesh often offer extensive customization capabilities. This flexibility ensures that the mesh perfectly aligns with specific functional, aesthetic, and regulatory demands.

Tailored Engineering for Diverse Needs:

• Wire Diameter and Mesh Size: Custom specifications for both the underlying steel wire gauge and the mesh aperture can be provided. This allows for optimization based on strength requirements, desired visibility, or specific containment needs. For example, delicate applications may use finer mesh, while heavy-duty security requires thicker wires and smaller apertures.
• Coating Thickness and Material: While PVC is standard, variations in coating thickness can be applied to enhance protection for extremely corrosive environments. Specialized PVC formulations (e.g., fire-retardant, anti-microbial) can also be developed for niche applications.
• Color Matching: Beyond standard green or black, custom color matching services are available to integrate the fencing seamlessly with corporate branding, architectural designs, or specific environmental aesthetics.

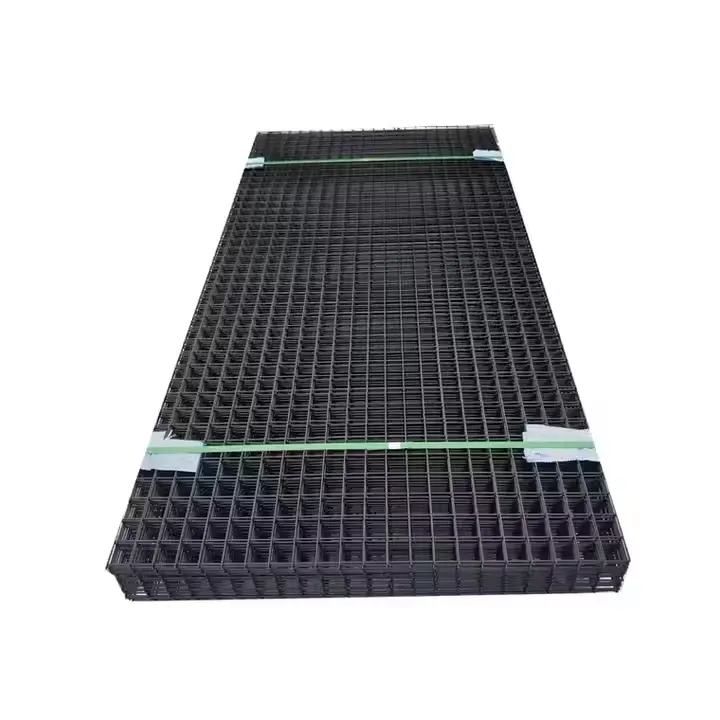

• Panel and Roll Dimensions: Manufacturing facilities can produce mesh in custom panel sizes or roll lengths to minimize waste and streamline installation for large-scale projects, including non-standard widths and heights.
• Value-Added Fabrication: Additional fabrication services such as cutting to size, bending, or adding specific attachment points can be offered to create ready-to-install components.

Our company, with over 20 years of experience in wire mesh manufacturing, leverages advanced CNC machining and coating technologies to deliver precision-engineered coated welded wire mesh solutions. Our dedicated R&D team continuously innovates, collaborating closely with clients from concept to delivery, ensuring that even the most complex technical requirements are met with optimal material performance. We adhere to rigorous ISO 9001 quality management standards and conduct in-house testing to ASTM and EN specifications, providing verifiable data to support our product claims.

Real-World Application Case Studies

The proven performance of pvc coated welded wire mesh is best demonstrated through its successful deployment in diverse and demanding applications.

Case Study 1: Coastal Industrial Facility Security Fencing

• Client: A leading petrochemical refinery located on the Gulf Coast.
• Challenge: The existing galvanized perimeter fencing suffered rapid corrosion due to constant exposure to salt spray, high humidity, and industrial atmospheric pollutants, requiring frequent repairs and premature replacement.
• Solution: We supplied 5,000 linear meters of black vinyl coated welded wire fence, featuring a 2-inch x 2-inch mesh from 10 BWG steel wire, with a 0.8mm thick PVC coating, specifically formulated with enhanced UV and chemical resistance.
• Outcome: After five years, the new fencing showed virtually no signs of corrosion or degradation, significantly outperforming previous installations. The client reported a 70% reduction in maintenance costs for fencing and enhanced site security due to the fence's integrity. An operations manager noted, "The durability of this pvc coated welded wire mesh has far exceeded our expectations in this aggressive coastal environment."

Case Study 2: Large-Scale Aquaculture Fish Farm

• Client: A prominent marine fish farming operation in Southeast Asia.
• Challenge: Traditional mesh materials used for aquaculture cages and dividers were prone to rapid biofouling and marine corrosion, leading to frequent mesh replacement and risks to fish stock containment.
• Solution: We provided custom-fabricated panels of 1 2 inch pvc coated wire mesh, using 14 BWG steel wire and a specialized marine-grade PVC coating known for its anti-fouling properties and extreme saltwater resistance. The panels were designed for easy modular assembly.
• Outcome: The PVC coated mesh demonstrated exceptional resistance to both marine corrosion and biofouling over a three-year period, significantly reducing cleaning cycles and extending the lifespan of the cages by over 100%. This resulted in substantial operational cost savings and improved fish health and containment. The farm owner stated, "Our investment in PVC coated mesh paid for itself within two years, thanks to reduced maintenance and better protection for our valuable stock."

Ensuring Trust and Reliability: Your Partner in Mesh Solutions

At Jinjiu Wire Mesh, we understand that trust is built on transparency, quality, and unwavering support. Our commitment to excellence extends beyond product manufacturing to comprehensive customer service and reliable post-sales support, solidifying our reputation as an authoritative and trustworthy vendor in the B2B sector.

Frequently Asked Questions (FAQ):

Lead Time and Fulfillment:

Our streamlined manufacturing process and robust supply chain enable efficient order fulfillment. Standard orders for coated welded wire mesh typically have a lead time of 2-4 weeks, depending on quantity and customization. For urgent or large-scale projects, we offer expedited production options. We provide detailed production schedules and regular updates to ensure transparency and timely delivery.

Warranty Commitments:

We stand behind the quality of our pvc coated welded wire mesh with a comprehensive warranty against manufacturing defects and premature coating degradation. Our standard product warranty typically covers 5-10 years, reflecting our confidence in the material's durability and the integrity of our manufacturing process. Specific warranty terms will be detailed in your contract.

Dedicated Customer Support:

Our expert sales and technical support teams are available to assist you from initial inquiry through post-installation. We provide detailed technical specifications, installation guides, and troubleshooting support. For inquiries, technical assistance, or to request a quote, please contact us via phone at [Your Phone Number] or email at [Your Email Address]. Our team is committed to providing prompt and knowledgeable assistance.
